Guard Rail Roll Forming Machine

Description

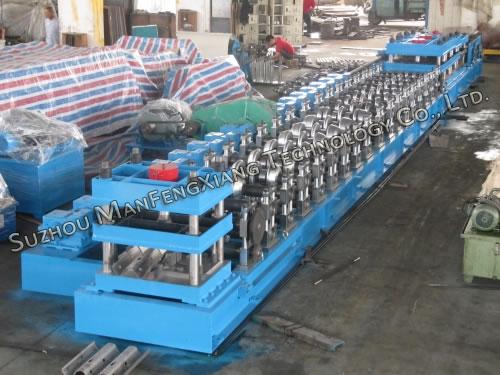

Guard rail roll forming machine is used to produce guard rails or crash barriers. Hot rolled, galvanized or other steel sheet and coil is suitable roll forming materials for this machine. This machine is mainly made up of loading coil car, exit looping kit, roll former with tooling, automatic stacking device, flying cut-off machine, servo roll feeder, leveler, loading coil car, etc. The finished products are widely used on highway, expressway and other public places to prevent different kinds of accidents and improve safety. They can also be used as fence for livestock farms and other places.

Features
1. This production line can be automatically run by inputting some data (like products length and batches) to the PLC control system.
2. Very strong base frame is configured to avoid vibration.
3. All the rollers have been processed by CNC lathe and polished on the surface to guarantee the accuracy.
4. The rollers have gone through hardened treatment to guarantee long lifespan.
5. We can also design the crash barrier roll forming machine according to customer’s requirement.

Application of Guard Rail

Forming Processing
Un-coiling→ flatting→ punching→ fast feeding→ pre-cutting→ forming→ alignment device → collection→ controller→ forming moulds

Categories

1. Three Waves Guard Rail Roll Forming Machine

Thickness 2mm to 3.5 mm
Speed 12m/min (not include cutting and punching)
Roll station 20 stations
Main power 55KW
Hydraulic power 15KW
Control system PLC Panasonic
Drive By gear box or by chain

2. Guard Rail Roll Forming Machine
Thickness 3mm to 5 mm
Speed 15m/min (not include cutting and punching)
Roll station 12 stations
Main power 37KW
Hydraulic power 18.5KW
Control system PLC Panasonic
Drive By gear box or by chain

3. Guardrail Forming Machine
Thickness 2.0mm to 3.2mm
Speed 15m/min (not include cutting and punching)
Roll station 17 stations
Main power 37KW
Hydraulic power 18.5KW
Control system PLC Panasonic
Drive By gear box or by chain

Note:Detailed information for above three machines is available in following PDF files. If more details are needed, welcome to contact us.
