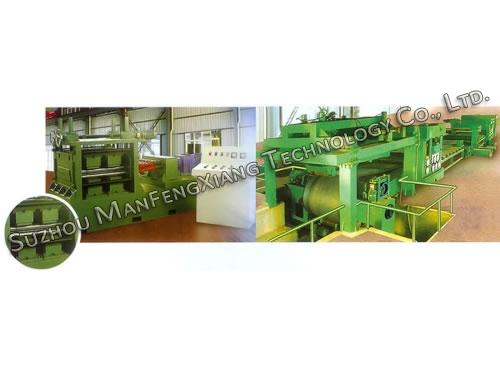

Thick Board Cut-To-Length Machine
Description
Cut-to-length machine is used to cut the metal plate by de-coiling, leveling, sizing and shearing into the desired length. The finished products are needed to be stacked. This cut-to-length machine (CTL Line) is suitable for common carbon steel with coil thickness within 6 to 25mm and cutting speed range of 0 to 40m/min.
Components of 6mm-25mm × 25000mm Cut-to-Length Machine

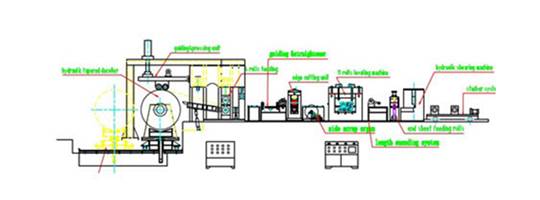

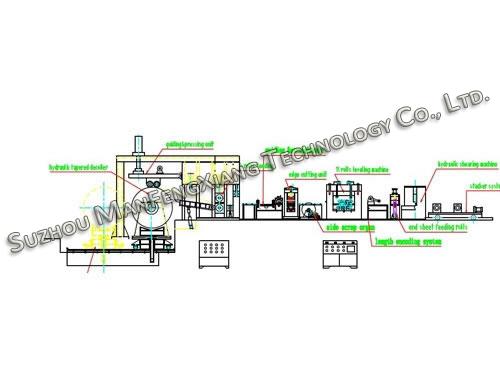

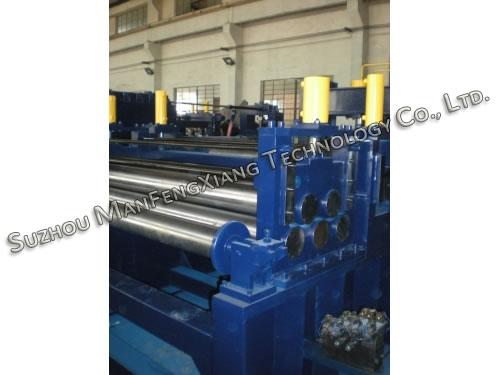

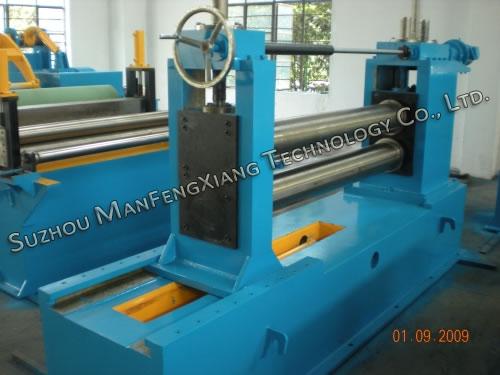

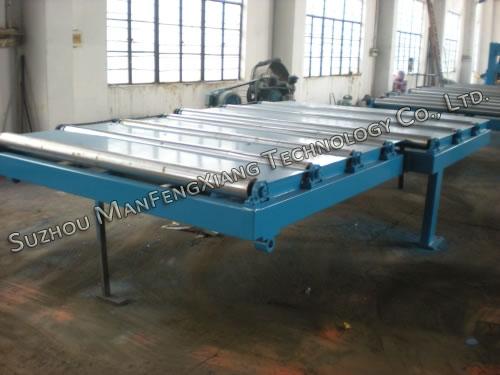

Cut-to-length machine is composed of V-shaped coil platform, hydraulic coil car, hydraulic (tapered form) de-coiler, hydraulic guiding and pressing and shovel head unit, pin rolls feeding and first leveling unit, guiding organ, leveling machine, encoding length organ, hydraulic shearing machine, pin rolls organ, hydraulic system and electrical cabinet control system and 6m auto-stacker table.

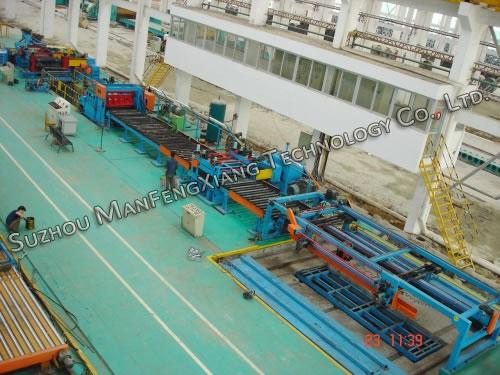

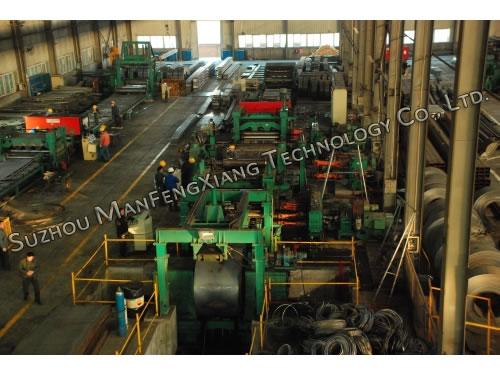

Flow chart of Cut-to-length Machine
Hydraulic Coil Car → Double Tapered De-Coiler Machine → Pressing and Guiding → Pinch Rolls Feeding and First Leveling → Guiding--Second-Time Leveling → Encoding Length Set → Hydraulic Cutting → Pinch Rolls Feeding → Stacker System
Parameters of Cut-to-Length Machine
| Steel Coil Grade | common carbon steel, (Q195 and Q235, Q345) |
| Coil Thickness | 6--25mm |
| Feature of Steel Coil | δΣs350--550N/mm2 |
| CTL Line Machine Coil Width | 900mm--2500mm |
| Coil Outer Diameter | ф1200--ф2200mm |
| Coil Width | 900mm--2500mm |
| Coil Inner Diameter | ф508, ф610, φ800 |
| Sheet Coil Cut to Length Line Cutting length | 1000mm--12000mm |
| CTL Line Machine Coil weight | ≤40T |
| Cutting Length Tolerance | +/-1mm |
| Cutting Diagonal Tolerance | +/-1.5mm |
| Sheet Coil Cut to Length Line Speed | 0--40m/min |
| Cutting Speed | 3pcs of sheet per minute according 6m long |
- Slitter/Cut-To-Length Combination Machine LineSlitting cut-to-length machine line is a combination of slitting line and CTL line. It is made up of 1 DC cabinet, 1 main operation cabinet, 2 accessory cabinets and PLC controlling system. It achieves interactive dialogue by means of touch screen. All of the 3 operation cabinets have the emergency stop button to protect the workers and equipment...
