Slitter/Cut-To-Length Combination Machine Line
Description
Slitting cut-to-length machine line is a combination of slitting line and CTL line. It is made up of 1 DC cabinet, 1 main operation cabinet, 2 accessory cabinets and PLC controlling system. It achieves interactive dialogue by means of touch screen. All of the 3 operation cabinets have the emergency stop button to protect the workers and equipment.
Components

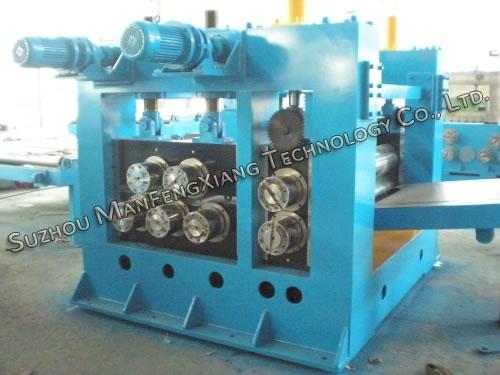

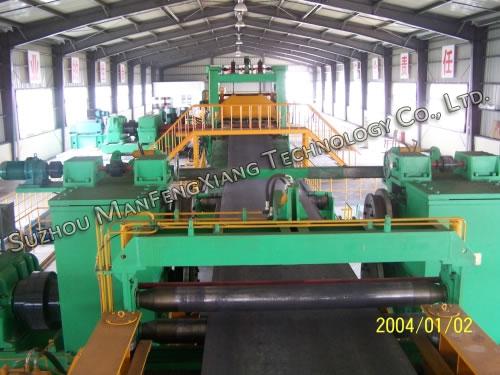

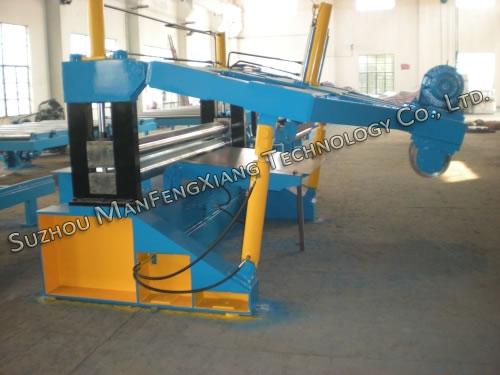

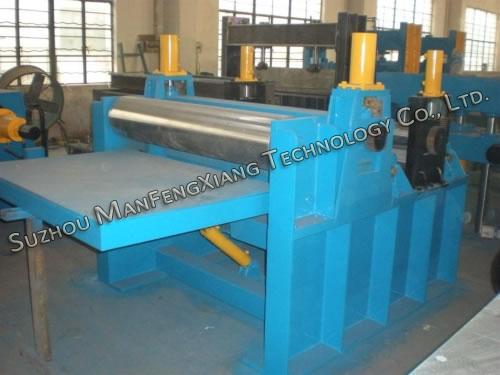

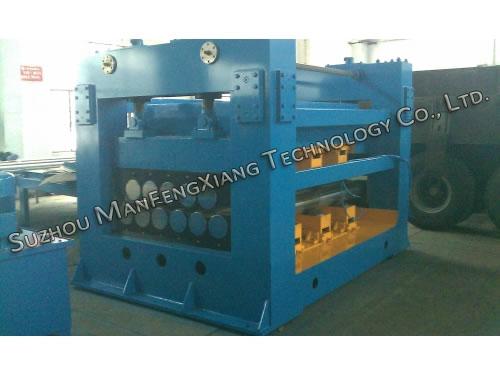

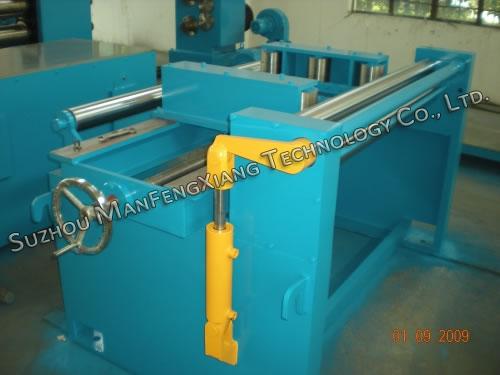

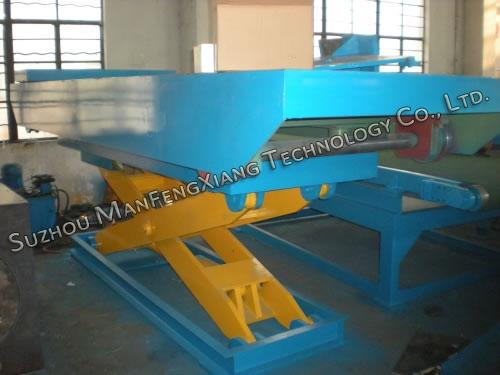

Slitting cut-to-length machine line is composed of V-shaped coil platform, hydraulic coil car, hydraulic (tapered form) de-coiler, hydraulic guiding and pressing and shovel head unit, pin rolls feeding and first leveling unit, over-bridge table, guiding organ, leveling machine, slitting machine, side scrap recoiling machine, encoding length organ, hydraulic shearing machine, pinch rolls organ, hydraulic system and electrical cabinet control system, sheet dropping organ and sheet auto-stacker table.

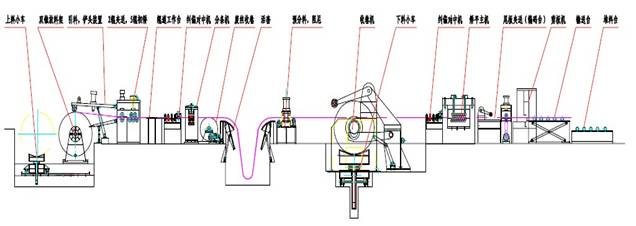

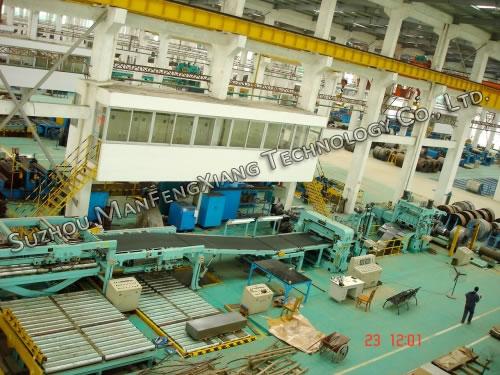

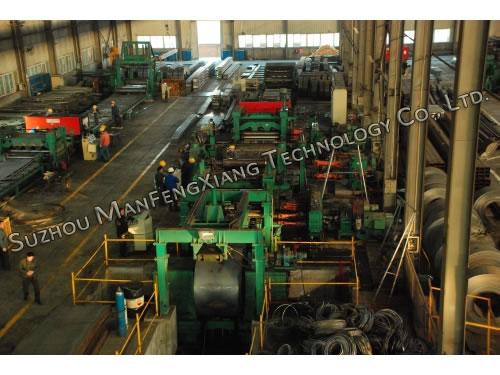

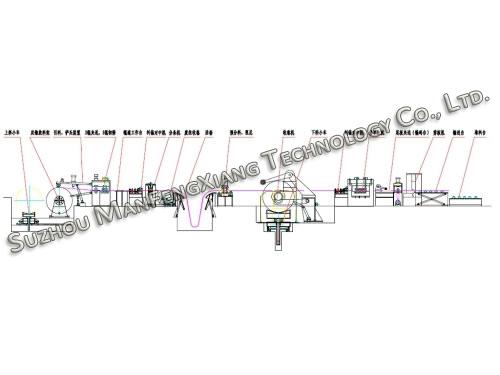

Flow Chart of Slitting Cut-to-Length Machine Line
Hydraulic Coil Car → Double Tapered De-Coiler Machine → Pressing and Guiding → Pinch Rolls Feeding and First Leveling → Guiding → Leveling → Edge Cutting Machine → Side Scrap Recoiling Machine → 11 Rolls Leveling Machine → Encoding Length Set → Hydraulic Cutting → End Sheet Rolls Feeding → Packing (Stacking System)
Parameters of Slitting Cut-To-Length Machine Line
| Steel Coil Grade | common carbon steel |
| Coil Thickness | 4-14mm |
| Feature of Steel Coil | δs=235 , δb=450 |
| Coil Width | 800mm－2000mm |
| Coil Outer Diameter | ф1200-ф2200mm |
| Coil Inner Diameter | ф508, ф610, ф760 |
| Cutting Length | 1000mm-12000mm |
| Slitter and Cutting-To-Length Combination Machine Line Coil Weight | ≤ 30T |
| Cutting Length Tolerance | +/-1mm |
| Cutting Diagonal Tolerance | +/-1.5mm |
| Leveling Rolls Diameter | 210mm |
| Leveling Speed | 0-24m/min |
| Slitting Power | 210kW |
| Slitting Speed | 0-20m/min |
| Cutting Speed | 2pcs of sheet according to 8m long |
- High Speed Sheet Cut-To-Length MachineSteel sheet cut-to-length line (CTL line) is generally used to cut thin metal plate into the desired length through de-coiling, leveling, sizing and shearing. The coil thickness and width are 0.2 to 3 mm and 300 to 1300 mm respectively. Its cutting length appears to be 1000 to 3000 mm and leveling accuracy is less than ±1.0 mm/m¬2. The cutting speed...
