Simple Slitting Machine
Description
Simple slitting machine is a member of metal coil and sheet slitting line. The whole slitting line is mainly composed of uncoiler, feeder, slitter and recoiler. This line is suitable for cutting or shearing Cr12 forged steel coil and sheet. It cuts the steel coil or sheet to needed width through a successive progress, such as uncoiling, slitting, recoiling, etc.
Features of metal coil and sheet slitting line
1. Hydraulic slitting technology is adopted to make cutting simple and easy.
2. Japan OMRON PLC control system is imported to achieve high automation.
3. This metal slitting machine is suitable for slitting coil and sheet with thickness range from 0.3mm to 1.0mm.
4. Slitting speed can be adjusted according to production requirement.
Specifications of metal coil and sheet slitting line
| Slitting Material | Cr12 Forged Steel with Quenched and CNC Treatment |
| Material | 1200mm (Width) & 0.3mm to 1.0mm (Thickness) |
| Slitting Speed | 12 to 15 (m/min) |
| Material of Shafts | 45# Steel with Fine Treatment |
| Main Motor Power of Uncoiling Slitting Recoiling Line | 7.5Kw |
| Hydraulic Station of Steel Slitting Machine | 4Kw |
| Electrical System | PLC Control, OMRON Made in Japan |
| Hydraulic De-Coiler Capacity of Steel Slitting Machine | ≤ 5tons, Inner Diameter 508mm |
| Electricity Requirement of metal coil and sheet slitting line | 380V, 3 Phase, 50Hz |
| 2 Rubbers for Feeding | |
| Side Waste Rewinding for Both Sides | |
| Size | 9000 × 1500 × 1400 (mm) |
| Max. Slits of Uncoiling Slitting Recoiling Line | 9 |
| Way of Slitting | Round Disk Slitting |
| Motor for Hydraulic De-Coiler | 4 KW |
| Specification of De-Coiling | Ф508 × 1300(Mm) |
| Expansion Range of The Steel Slitting Machine | 450 to 550(Mm) |

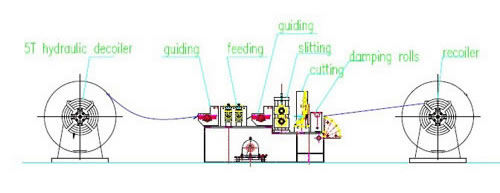

Flow chart of metal coil and sheet slitting line
5T Hydraulic De-coiler→Slitting Part→Separator Part→Recoiled
