Guard Rail Roll Forming Machine

This kind of roll forming machine adopts extra stations to increase the firmness, and gearbox transmission to ensure more stable performance. The guardrails produced by this forming machine are widely used in highway, expressway, livestock farms and other places in need of guardrail protection.

Technical Specification of Guard Rail Roll Forming Machine

Thickness 3mm to 5 mm
Speed 15m/min (not include cutting and punching)
Roll station 12 stations
Main power 37KW
Hydraulic power 18.5KW
Control system PLC Panasonic
Drive By gear box or chain

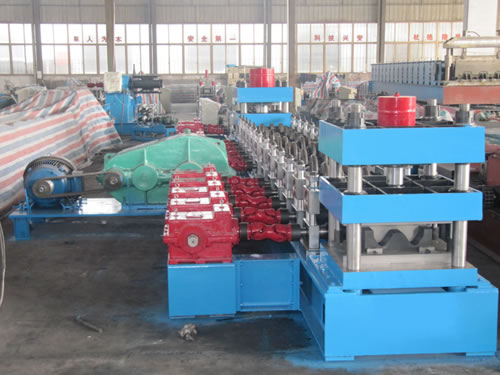

Picture of Guard Rail Roll Forming Machine

Picture of Guardrail

Profile Drawing of Guardrail

Flow Chart of Guard Rail Roll Forming Machine
