Guardrail Forming Machine

Features & Application
1. This kind of guardrail forming machine adopts new stations to increase the firmness.
2. Gearbox transmission is employed to ensure more stable performance.
3. The finish products guardrails are used as guardrails, crash barriers or fences in highway, expressway, livestock farm, etc.

Technical Specification

Thickness 2.0mm to 3.2mm
Speed 15m/min (not including cutting and punching)
Roll station 17 stations
Main power 37KW
Hydraulic power 18.5KW
Control system PLC Panasonic
Drive By gear box or by chain

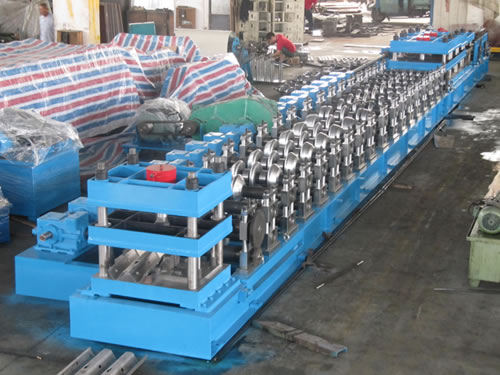

Picture of Guardrail Forming Machine

Picture of Guardrail

Profile Drawing of Guardrail

Working Process of Guardrail Forming Machine
