Three Waves Guard Rail Roll Forming Machine
Description
This kind of machine adopts multiple stations to increase firmness of roll forming machine. Besides, it is also configured with gearbox transmission to ensure more stable performance. The finish products manufactured with this guard rail roll forming machine can be used as guardrail for highway, expressway, livestock farm, and other places in need of guardrail protection.
Technical Specification of Three Waves Guard Rail Roll Forming Machine
| Thickness | 2mm to 3.5 mm |
| Speed | 12m/min (not included cutting and punching) |
| Roll station | 20 stations |
| Main power | 55KW |
| Hydraulic power | 15KW |
| Control system | PLC Panasonic |
| Drive | By gear box or by chain |

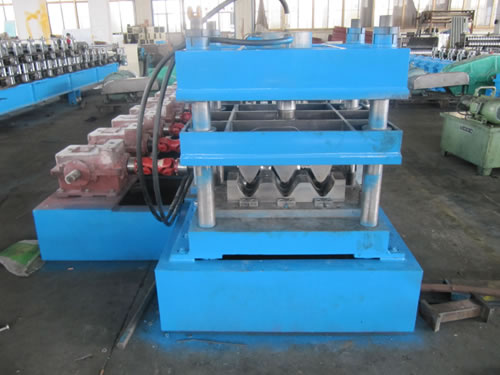

Picture of Three Waves Guard Rail Roll Forming Machine
Profile Drawing of Guard Rail
Picture of Three Waves Guard Rail
Layout Drawing of Three Waves Guard Rail Roll Forming Machine
Application of Guard Rail
