Z Purlin Roll Forming Machine
Description
Main components of Z purlin roll forming line are de-coiler, guiding system, leveling system, pre-cutting system, roll forming system, electric controlling system, hydraulic system, and bracket. This roll forming machine is mainly applied to make Z purlins from coiled steel sheets. The finished Z purlins are widely used in steel structure building.
As specialist tube mills and roll forming line manufacturer in China, we produce a complete series of machinery products which are widely utilized in construction industry, especially for factory building, warehouse facilities, store facilities, etc. Besides tube mills and roll forming machines, other machines including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, etc. are also manufactured by us. All our Z purlin roll forming machines are featured by high accuracy, easy operation, convenient maintenance and high efficiency. Welcome to visit our company, see first class fabrication facilities and discuss your needs face to face.
Technical Specification of Z Purlin Roll Forming Machine
| Raw Material | Coiled steel sheets |
| Thickness | 1.5mm to 3.0mm |
| Speed | 15m/min (not include cutting and punching) |
| Roll station | 18 stations |
| Main power | 15KW |
| Hydraulic power | 5.5KW |
| Control system | PLC Panasonic |
| Drive | by chain or by gear box |
| Automaticity | Semi-automatic / automatic |

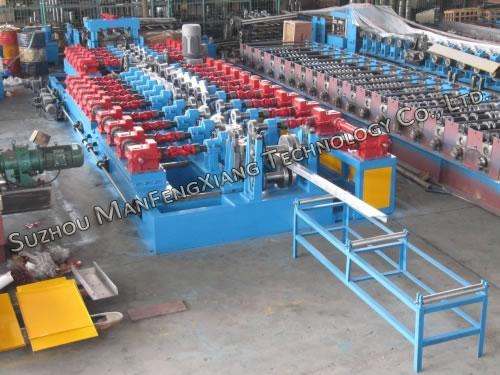

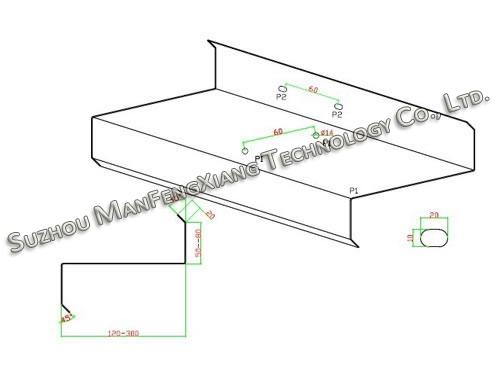

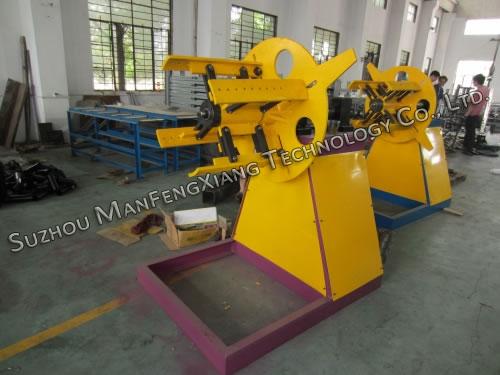

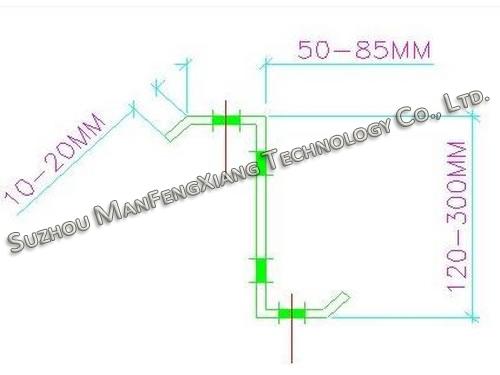

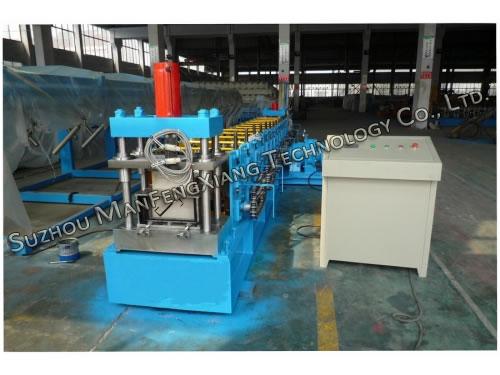

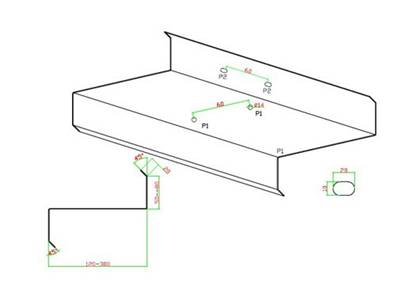

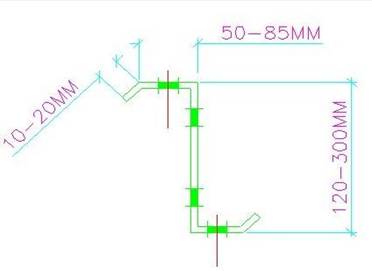

Profile of Z Purlin

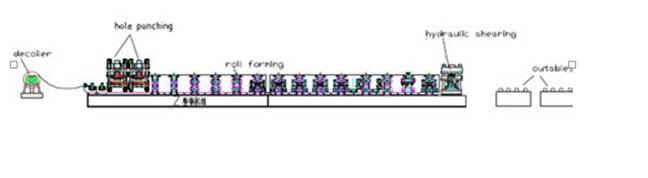

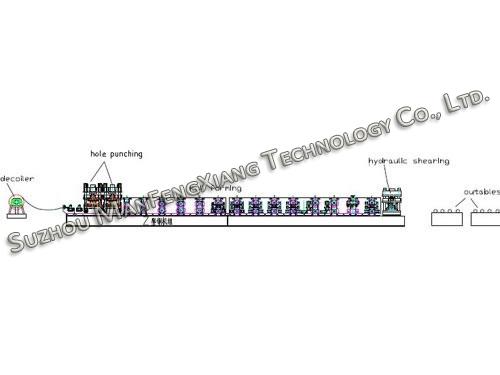

Flow Chart of Z Purlin Roll Forming Line
Model of Z Purlin Roll Forming Machine
| MODEL | H | B | B | C | T |
| Z145 | 145 | 60 | 60 | 20 | 1.5-3.0 |
| Z180 | 180 | 67 | 61 | 20 | 1.5-3.0 |
| Z200 | 200 | 67 | 61 | 20 | 1.5-3.0 |
| Z230 | 230 | 72 | 77 | 20 | 1.5-3.0 |
| Z250 | 250 | 78 | 72 | 20 | 1.5-3.0 |
| Z300 | 300 | 78 | 72 | 20 | 1.5-3.0 |
- C/Z Purlin Quick Interchangeable Roll Forming MachineThis kind of machine can produce C & Z two profiles purlin without changing forming roller. C/Z purlin roll former is mainly made up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, and runout tables. 1. This C / Z purlin roll forming machine can produce differenct...
