C/Z Purlin Quick Interchangeable Roll Forming Machine
Description
This kind of machine can produce C & Z two profiles purlin without changing forming roller. C/Z purlin roll former is mainly made up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, and runout tables.
Features of Quick Interchangeable C/Z Purlin Roll Forming Machine
1. This C / Z purlin roll forming machine can produce differenct C/Z purlins through simple manual stepless adjustment.
2. When the machine manufactures different profile, it does not need to change the forming rollers. By adjusting up and down position of the roller, it can easily achieve conversion of C and Z purlin mould.
3. The width of C or Z purlins can be changed precisely by adjusting horizontal distance of the roller.
4. This machine adopts PLC automatic control system. In the roll forming process, it can punch, cut, and rollform automatically based on inputting length of purlin, portrait hole distance, quantity, and other production data.
Technical Specification of Quick Interchangeable C/Z Purlin Roll Forming Machine
| Thickness | 1.5mm to 3.0mm |
| Speed | 15m/min |
| Roll station | 18 stations (7 stations for straighten) |
| Main power | 18.5KW |
| Hydraulic power | 5.5KW |
| Control system | PLC Panasonic |
| Drive | By gearbox and shaft for each station or by chain |
| Automaticity | Semi-automatic / full automatic |

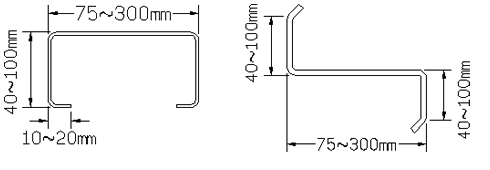

Profile of e C & Z Purlin

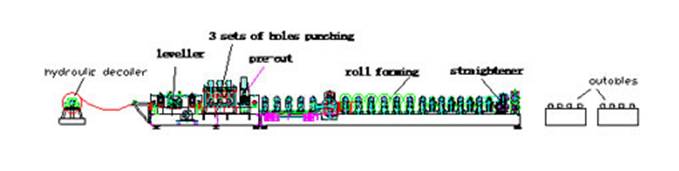

Flow Chart of Quick Interchangeable C/Z Purlin Roll Forming Machine
Pictures of Quick Interchangeable C/Z Purlin Roll Forming Machine

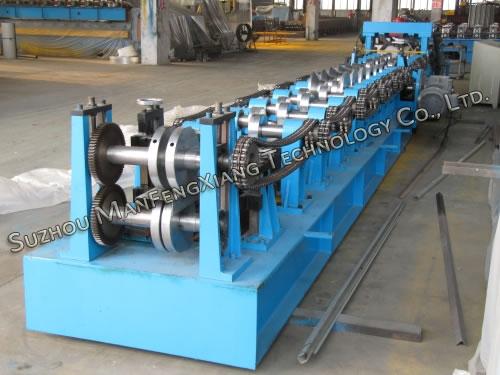

- Side View of the Machine

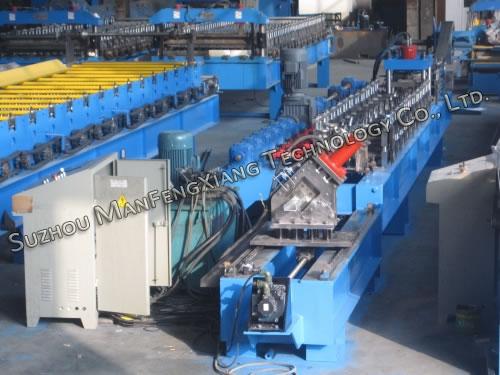

- Front View of the Machine

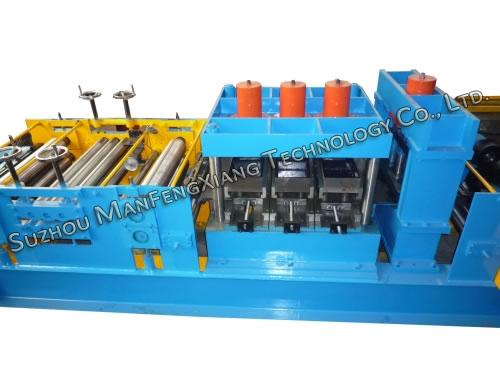

- Leveling & Punching Portion
SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is dedicated in designing and supplying manufacturing different steel cutting, bending and forming equipments, including tube mills, roll forming machines, etc. Apart from tube making machine and steel roll forming machine, we devoted ourselves to the research & development of various kinds of other products related to steel structure, such as hydraulic press brake machine, roll former, shearing machine, slitting machine, cutting machine, production lines of guardrail sheet for expressway, shutter doors, and garages doors, etc. Our quick interchangeable c/z purlin roll forming machines are well received by customers from North America, South America, Europe, Middle East, Southeast Asia, Russia, Australia and other regions. Welcome to visit our company and discuss your needs face to face.
