Square Pipe (Tube) Roll Forming Machine

Introduction

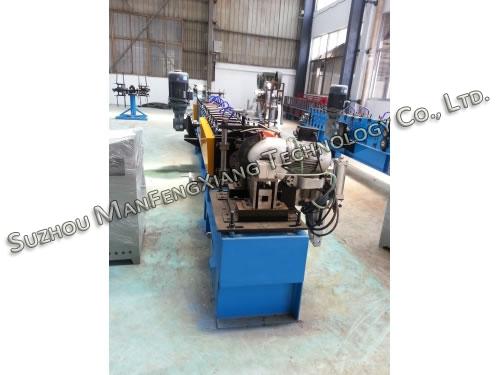

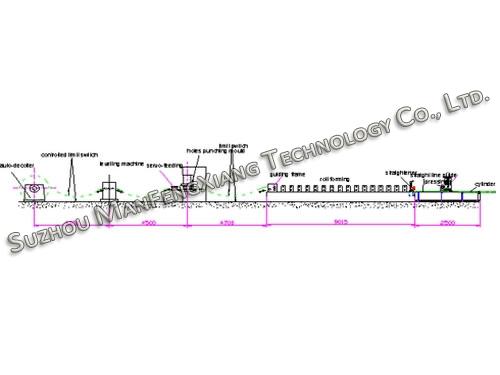

Square pipe making machine is used to form metal sheets into square pipes, downpipes, and so on. This square tube roll forming machine is composed of passive/hydraulic un-coiler, flying tracking cutter, servo motor, roll forming unit, PLC automatic control cabinet and product run-out table. It has 26 roll stations, and it can process metal sheets whose thickness ranges from 1.5 mm to 2 mm. Main Power of this machine is 18.5Kw, and the forming speed is 18 m/min to 30 m/min.

SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is dedicated in manufacturing different steel bending and forming equipments, including tube mills, roll forming machines, square pipe making machines, etc. As specialist press brake manufacturer in China, we produce a complete series of machinery products which are widely utilized in construction industry, especially for factory building, warehouse facilities, store facilities, etc.

Parameters of Square Pipe Making Machines

Model 57-38
Number of Stations 26 Stations
Thickness 1.5 mm -2.0 mm
Main Power 18.5 KW
Dimensions About 9.0 m × 1.4 m × 1.2 m
Forming Speed 18 m/min-30 m/min

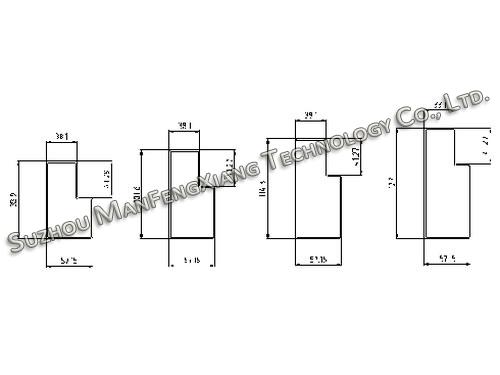

After Forming 57 mm
