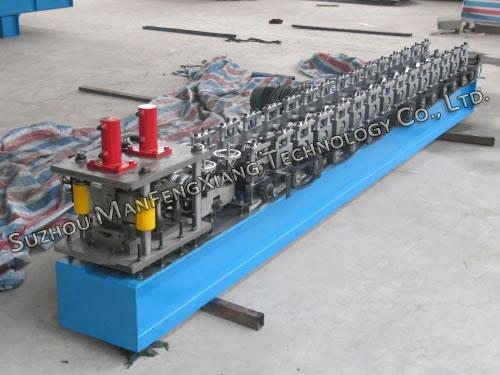

Garage Door Automatic Cold Roll Forming Machine
Parameters of Roller Shutter Roll Forming Machine
1. Coil width is designed in compliance with customers’ requirements.
2. Rolling speed ranges from 12 m/min to 15 m/min (not including cutting time).
3. The garage door automatic cold roll forming machine works with 14 roll stations.
4. Rollers are made from 45 # forge steel. Besides, they are polished and coated with chrome.
5. Main shaft also adopts 45 # forge steel as materials.
6. Roller diameter is 56 mm.
7. This roller shutter roll forming machine can process steel sheet whose thickness is 0.5 mm to 1.2 mm.

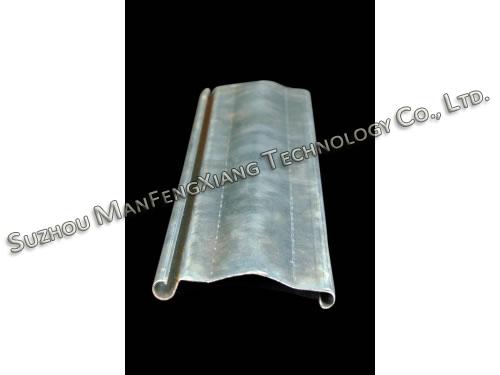

8. After being formed, the metal products can be cut into required length.
9. Before cutting, the main machine will automatically stop, and after cutting, it will automatically start again.
10. Blades are made from Cr12. Besides, they have accepted heat treatments.
11. Length tolerance is +/- 1.5 mm.
As specialist press brake manufacturer in China, we produce a complete series of machinery products which are widely utilized in construction industry, especially for factory building, warehouse facilities, store facilities, etc. Our products, including roller shutter roll forming machines, have won acclaim from all customers at home and abroad. SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is always ready to provide the best solution for your production requirements.
- Octagonal Steel Tube (Pipe) Roll Forming MachineOctagonal tube roll forming machine is widely used to shape steel sheets into tubes or pipes. Details are as follows: 1. It is easy to operate. 2. Rolling thickness is 0.4 mm to 0.8 mm. 3. Material width is 142 mm. 4. This steel pipe production line has 21 roller stations, including vertical rollers and horizontal rollers. 5. Its rolling speeds reaches up to 10 m/min...
