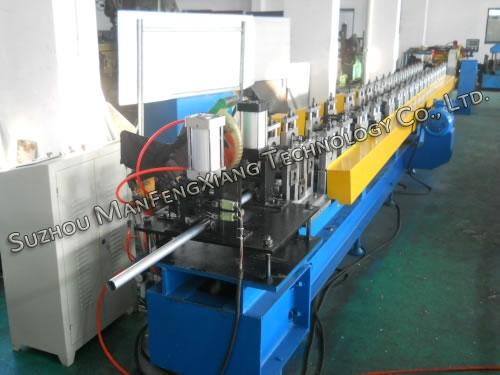

Octagonal Steel Tube (Pipe) Roll Forming Machine
Introduction
Octagonal tube roll forming machine is widely used to shape steel sheets into tubes or pipes. Details are as follows:
1. It is easy to operate.
2. Rolling thickness is 0.4 mm to 0.8 mm.
3. Material width is 142 mm.
4. This steel pipe production line has 21 roller stations, including vertical rollers and horizontal rollers.
5. Its rolling speeds reaches up to 10 m/min (without taking cutting time into consideration).
6. The octagonal tube roll forming machine is controlled by PLC system.
7. Cutting system adopts pneumatic flying saw cutter.
8. Tolerance is 3 m ± 1.5 mm.
9. Machines in yellow or blue are optional.
10. The servo motor power is 4 KW, and the main motor power is 7.5 KW.
Parameters of Octagonal Tube Roll Forming Machine
| 1 | Model | MFX16-16 |
| 2 | Material Width | Material Width |
| 3 | Raw Material | Galvanized Steel Coil |
| 4 | Rolling Speed | 0-10 m/min (Not include Cutting Time) |
| 5 | Rolling Thickness | 0.4-0.8 mm |
| 6 | Control System | PLC (Panasonic) as List in the Note |
| 7 | Un Coiler | 1.5 Ton Manual De-coiler |
| 8 | Feeding System | Step-by-Step Feeding Servo Feeding |
| 9 | Servo Motor Power | 4 KW |
| 10 | Punching System | 25 Ton Punching Machine |
| 11 | Roller Stations | 21 Stations Level Rollers and a Series of Standing Rollers |
| 12 | Roller Material | 45# Steel Coated with Chrome |
| 13 | Shaft Material and DIA | Diameter 76 mm, 45# Forge Steel, Hardening and Tempering |
| 14 | Main Motor Power | 7.5 KW |
| 15 | Cutting System | Flying Saw Cutter (Pneumatic) |
| 16 | Type of the Stations | Guide Pillar Memorial Archway |
| 17 | Tolerance | 3 m ± 1.5 mm |
| 18 | Electric Source | 380 V, 50 HZ, 3 Phase, Satisfy Customer’s Require |
| 19 | Way of Drive | 1.2 Inch Single Chain |
| 20 | Color of the Machine | Yellow and Blue |
Our tube mills, octagonal tube roll forming machines and other products have been sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Our products have won acclaim from all customers at home and abroad. SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is always ready to provide the best solution for your production requirements.
