Rack (Shelf) Roll Forming Machine

Introduction
Rack roll forming machines, also known as shelf roll forming machines, shelving rack roll forming machines, shelving roll forming machines or shelves rack roll forming machines, can form metal sheets into rigid metal profiles for high storage units. These metal racks are widely used to support and bear goods and merchandise in the stores or in the warehouses. As specialist shelf plate roll forming machine manufacturer, Suzhou Manfengxiang applies advanced technologies and devices in machine production. Track cutting technology is adopted to ensure quality gear box transmission, rigid machine body and high working strength. Besides, material feeding is done by servo controlling; in this way, punching process is complex while precise.

Constitution of Rack Roll Forming Machines
It is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding part, fly shearing system, run-out table, electronic controlling system, hydraulic system, servo motor, roll forming unit, PLC automatic control cabinet, etc.

Parameters of Rack Roll Forming Machines

Model 75-80 / 95-100
Number of Stations 24 Stations
Thickness 1.5-3.0
Main Power 15 KW
Dimensions 9.0 m × 1.4 m × 1.2 m
Forming Speed 18-30 m/min

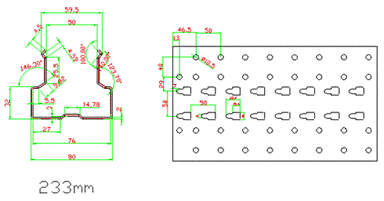

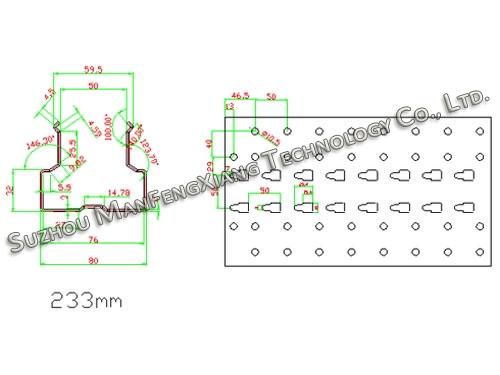

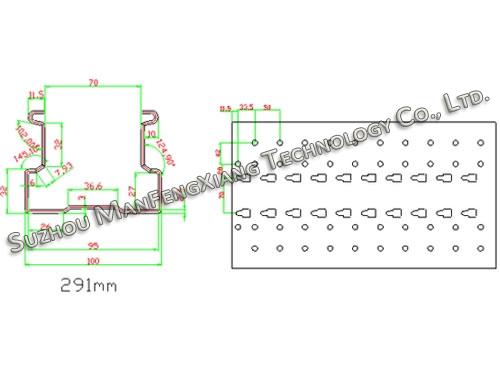

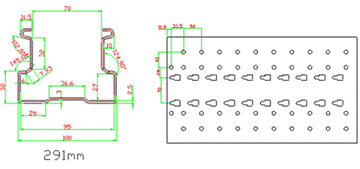

After Forming 75-80 mm / 95-100 mm

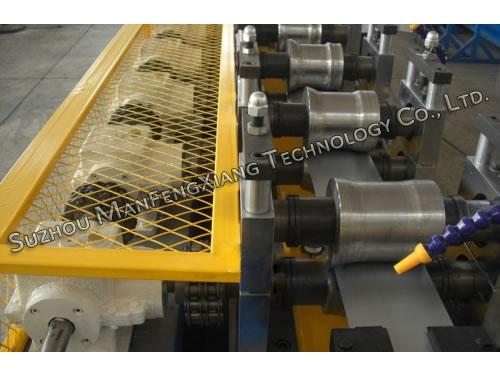

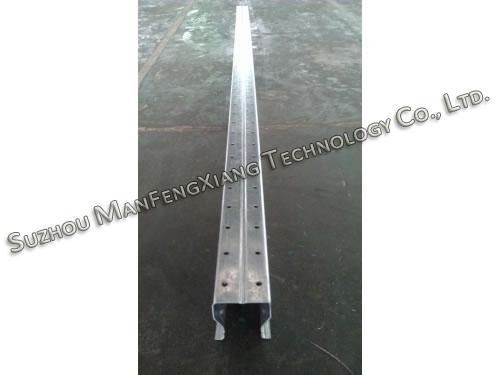

Pictures for Reference
