Storage Uprights Rack Roll Forming Machine
Introduction

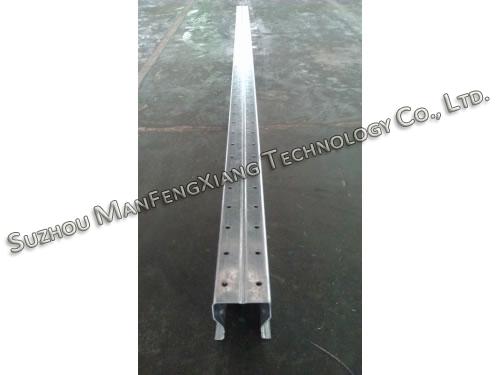

Storage uprights rack roll forming machines are specialized in producing various racks which are for supporting and bearing goods and merchandise in the stores or in the warehouses. During production of this panel rollforming machinery, track cutting technology is adopted to ensure quality gear box transmission, rigid machine body and high working strength. Besides, material feeding is done by servo controlling; hence, punching process is complex while precise.
Technical Parameters of Storage Uprights Rack Roll Forming Machine
| Motorized De-coiler | ≤ 3 T |
| Leveling Machine | 5.5 KW, Frequency-Conversion Motor, Adjustable Speed |
| Servo Motor Feeder | Yakama Servo Motor |
| Punching Press | 125 Tons Capacity, Made in China |
| Punching Mould | Cr12 Mov |

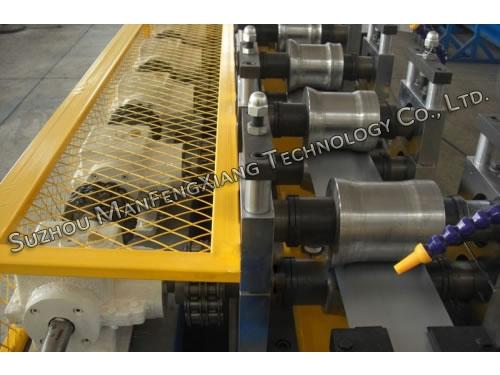

| Main Forming Machine Unit | Cast Iron Stands, 16 Forming Stations, Rolled Thickness: 1.5 - 2.5 mm, Power: 15 KW |
| Hydraulic Cutting of Storage Uprights Forming Machine | Cutting Blade Material Cr12 |
| Roller Material | Material GCr15, HCR58-62 |
Technical Data of 3in 1 NC Servo Feeder, Straightener and De-coiler
| Coil Weight: | 1000 kg |
| Strip Width: | 300 mm |
| Thickness | 1.5-2.5 mm |
| Storage Uprights Forming Machine Coil O. D | 1200 mm |
| Coil I.D: | 508 mm |
| Feeding Length Input | 9999.99 mm |
| Feed Speed | 15 m/min |
| Feed Accuracy | 0.15 mm |
| Storage Uprights Forming Machine Electrics | 380 Volts 50 HZ, Depend on Buyer’s Requirement |
| Working Direction | Depend on Buyer’s Requirement. |
