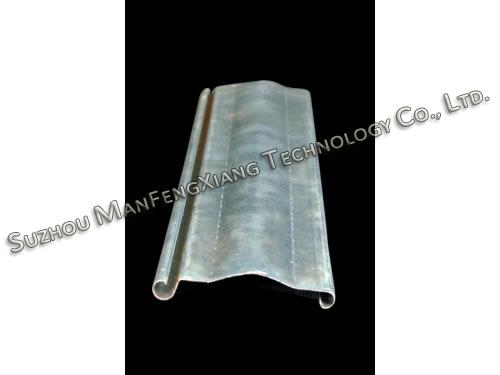

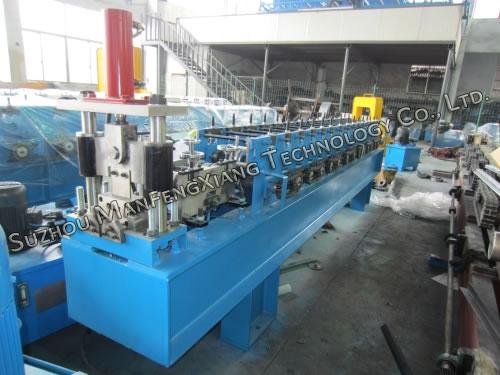

Roller Shutter Door Roll Forming Machine
Features
1. This panel rollforming machine is controlled by PLC system.
2. Operation is easy, and machine performance is steady as well as reliable.
3. It features durable working life.
4. Custom metal roofing panel roll former with certain configuration is manufactured according to customers’ requirements.
Parameters
1. Coil width depends on profiles required by customers.
2. In the panel rollforming machine, working speed is 12 m/min to 15 m/min (cutting time is not included).
3. There are 14 roll stations.
4. Roller is made from 45 # forge steel. It is polished and coated with chrome.
5. Main shaft is made from 45 # forge steel, too.
6. Diameter of rollers is 56 mm.
7. Main power is 4 KW.
8. Sheet metal products can be cut into required length after being formed.
9. Before cutting metal products, the main machine of panel rollforming machine automatically stops and then the cutting will take place. After cutting process, the main machine will automatically start again.
10. Length tolerance is +/- 1.5 mm.
SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is dedicated in manufacturing different steel bending and forming equipments, including tube mills, roll forming machines, panel rollforming machines, etc. Our products have been sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania.
