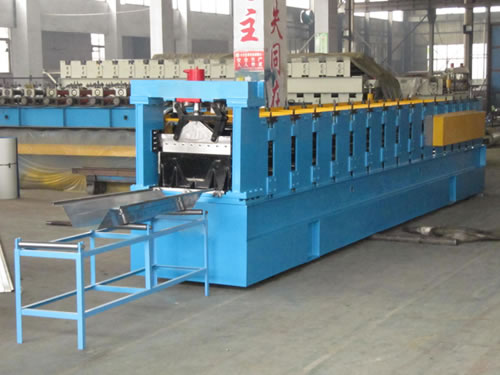

MFX 610 K (Big) - Span Curved Roll Forming Machine
Our roll forming machine can produce different kinds of steel panel tiles for roof and wall, which are widely used in various fields, such as industrial factory, civilian building, warehouse, simple steel building, roof board, interior wall board and external wall board, decoration, etc. because of their nice appearance and durability.
Note:The complete K span arch roof forming line includes one set of main machine, one set of curving machine (or bending machine), and one set of auto seaming machine.
Photo of the bending machine
| 1. Raw Material | 914mm (Effective : 610mm) |
| 2. Thickness | 0.8mm to 1.2mm |
| 3. Working Speed | 12m/min to 15m/min (Not Contain Cutting) |
| 4. Roll Station | 17 Stations |
| 5. Material of Roller | 45#Forge Steel, Polished and Coated with Chrome |
| 6. Material of Main Shaft | 45#Forge Steel Ф80mm |
| 7. Main Power | 7.5kw |
| 8. Hydraulic Station Power | 4kw |
| 9. Hydraulic Pressure | 12Mpa |
| 10. Control System | PLC, Panasonic |
| 11. Material of Cutting | SKD11 |
| 12. Way of Drive | Single Row: 1.5inch |
Picture of Guardrail Forming Machine
Photo of the seaming machine

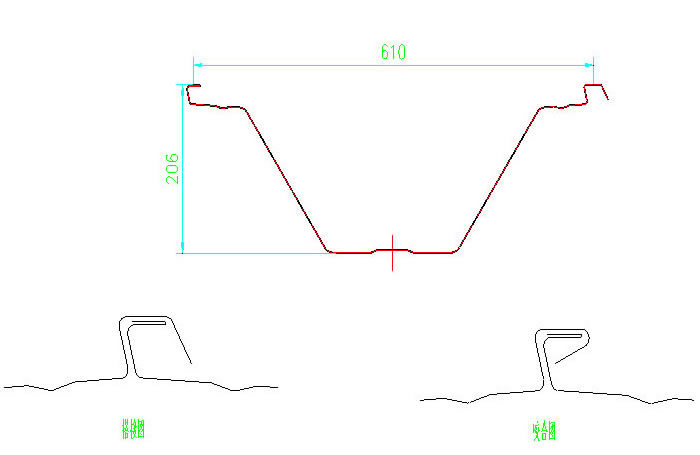

Profile Drawing
