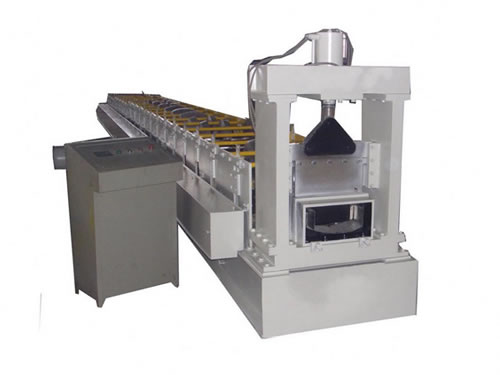

MFX 303 K (Big) - Span Curved Roll Forming Machine
Our roll forming machine can produce different kinds of steel panel tiles for roof and wall, which are widely used in various fields, such as industrial factory, civilian building, warehouse, simple steel building, roof board, interior wall board and external wall board, decoration, etc. because of their nice appearance and durability.
Parameter
| 1. Raw Material | 618 mm (Effective : 303 mm) |
| 2. Thickness | 0.8mm to 1.2 mm |
| 2. Working Speed | 10m/min to 15 m/min (Not Contain Cutting) |
| 3. Roll Station | 14 Stations |
| 4. Main Power | 5.5Kw |
| 5. Bending Machine Power | 4 Kw |
| 6. Hydraulic Station Power | 2.2 Kw |
| 7. Control System | PLC, Panasonic |
| 8. Way of Drive | Single Row Chain (1.5inch) |
Note:The complete line includes one set of main machine, one set of curving machine (or bending machine) and one set of auto seaming machine.

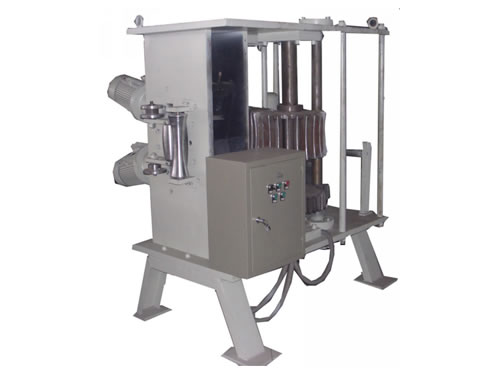

Photo of the bending machine
Photo of the seaming machine
