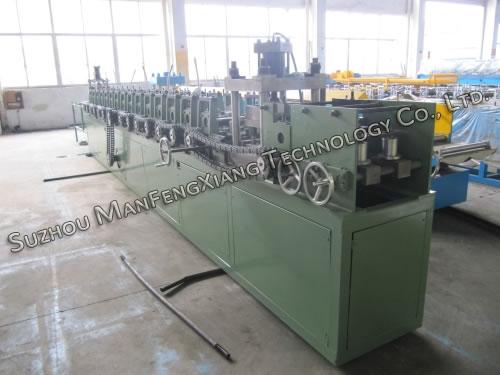

Guide Rail Roll Forming Machine
Description

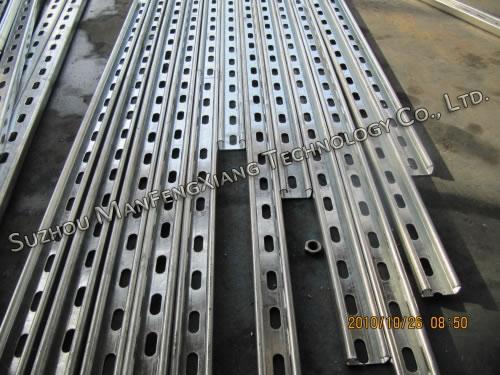

The guide rail roll forming line includes feeding device, de-coiler, roll forming machine, saw cutting device and PLC control system. The finished guide rails are commonly seen in elevator, doorframe, window frame, curtain track, electrical wiring trough as well as other devices that need sliding system.
Features
1. Guide rail roll forming machine adopts multiple stations to increase the firmness of the machine.
2. It is configured with gearbox transmission to ensure more stable working of the machine.
3. This roll forming machine can cut steel material with thickness 2.0mm to 3.0mm.
4. Our PLC control system is imported from world famous Panasonic Company.
Advantages
1. All of our guide rail roll forming machines have passed CE certification.
2. Our products have been widely sold to North America, South America, Europe, Middle East, Southeast Asia, Russia, Australia, etc.
Technical Specification of Guide Rail Roll Forming Machine
| 1. Thickness | 2mm to 3 mm |
| 2. Speed | 12m/min to 15 m/min |
| 3. Roller station | 17 stations |
| 4. Main power | 15Kw |
| 5. Hydraulic station power | 7.5Kw |
| 6. Control system | Panasonic PLC |
| 7. Drive | By gear |
Flow chart of Guide Rail Roll Forming Machine
Coil loading→hydraulic decoiling→leveling and feeding→roll forming→cutting→running out table
SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is dedicated in designing and supplying manufacturing different steel cutting, bending and forming equipments, including tube mills, roll forming machines, etc. Apart from tube making machine and steel roll forming machine, we devoted ourselves to the research & development of various kinds of other products related to steel structure, such as hydraulic press brake machine, roll former, shearing machine, slitting machine, cutting machine, guardrail roll forming machine for elevator, expressway, shutter doors, and garages doors, etc. Our products are well received by customers from North America, South America, Europe, Middle East, Southeast Asia, Russia, Australia and other regions. Welcome to visit our company and discuss your needs face to face.

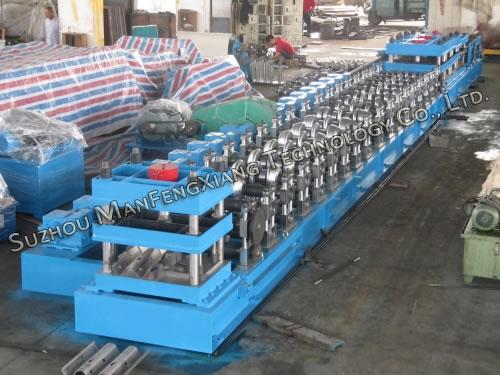

- Highway Barrier Roll Forming Machine1. This kind of machine adopts new station to increase the firmness, and gearbox transmission to ensure more stable performance. 2. This crash barrier roll forming machine, or expressway guardrail roll forming machine is designed and built to produce 2mm to 3.2mm crash barriers for the highway construction. 3. The finished crash barriers are used as guardrails for highway...
