Highway Barrier Roll Forming Machine
Features
1. This kind of machine adopts new station to increase the firmness, and gearbox transmission to ensure more stable performance.
2. This crash barrier roll forming machine, or expressway guardrail roll forming machine is designed and built to produce 2mm to 3.2mm crash barriers for the highway construction.
3. The finished crash barriers are used as guardrails for highway, expressway or other place in need of guardrail protection.
4. Usually we have 2 kinds of design for this roll forming machine including chain-brackets transmission, and gear-box transmission.
5. In most instance, the gear-box transmission crash barrier roll forming machine are more popular than chain-brackets one, because it’s more stable during working, and working faster particularly when dealing with the material more than 3mm thickness.
6. Under the advanced PLC control system, this gear-box transmission highway guardrail roll forming machine can work automatically, including punching, roll forming and hydraulic cutting after measuring the length of output.
Technical Specification of Crash Barrier Roll Forming Machine
| Thickness | 2.0mm to 3.2mm |
| Speed | 15m/min (not include cutting and punching) |
| Roll station | 17 stations |
| Main power | 37KW |
| Hydraulic power | 18.5KW |
| Control system | PLC Panasonic |
| Drive | By gear box or by chain |

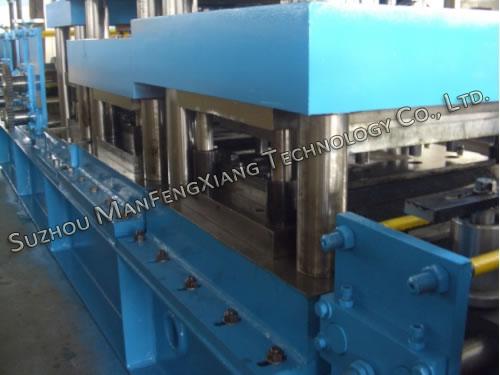

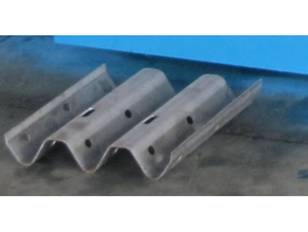

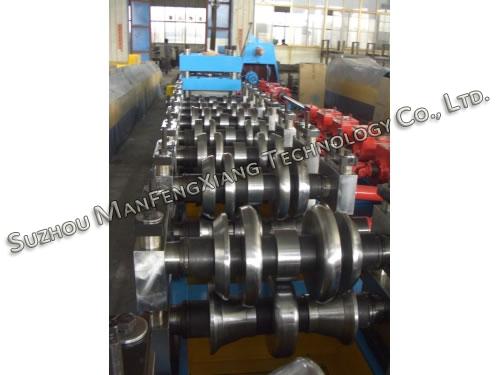

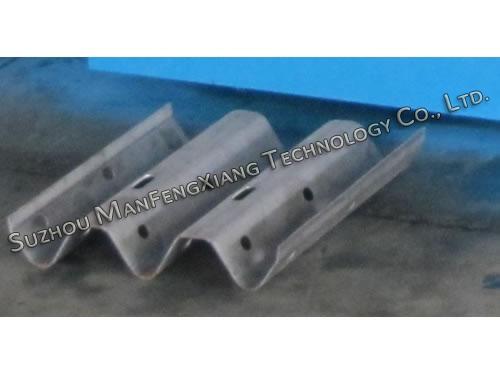

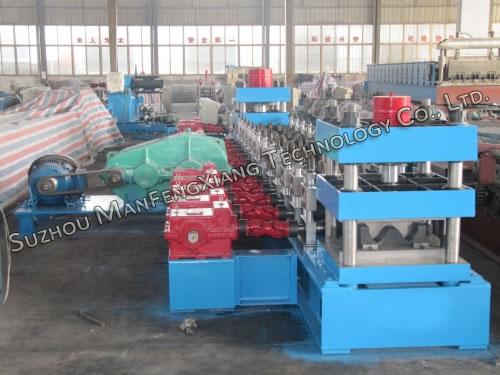

Picture of Crash Barrier Roll Forming Machine

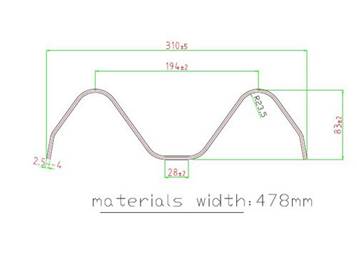

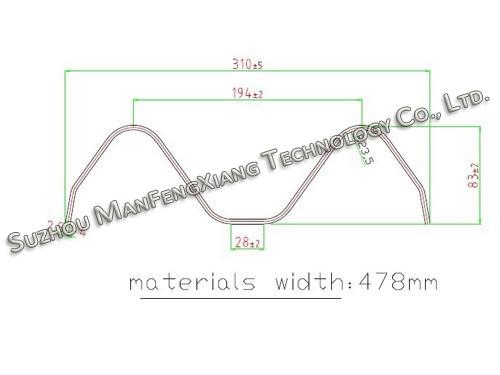

Profile Drawing of Highway Guardrail Roll Forming Machine
SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is dedicated in designing and supplying manufacturing different steel cutting, bending and forming equipments, including tube mills, roll forming machines, etc. Apart from tube making machine and steel roll forming machine, we devoted ourselves to the research & development of various kinds of other products related to steel structure, such as hydraulic press brake machine, roll former, shearing machine, slitting machine, cutting machine, crash barrier or guardrail roll forming machine for highway, expressway, shutter doors, and garages doors, etc. Our products are well received by customers from North America, South America, Europe, Middle East, Southeast Asia, Russia, Australia and other regions. Welcome to visit our company and discuss your needs face to face.
