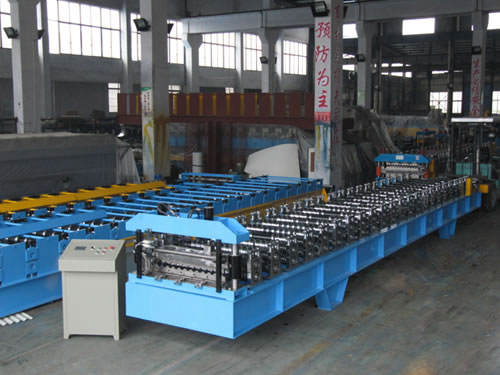

Roofing Panel Roll Forming Machine
This kind of machine is used for simple house, steel plants and other wall board production.
Specification of Roofing Panel Roll Forming Machine
| Material thickness | 0.3mm to 0.8mm |
| Working speed | 12m/min to 15m/min |
| Roll station | 18 stations (depend on the final profile) |
| Main power | 5.5KW |
| Hydraulic power | 3KW |
| Control system | PLC Panasonic |
| Drive | By chain |
| Material thickness | 0.3mm to 0.8mm |
| Working speed | 25m/min to 30m/min |
| Roll station | 18 stations (depend on the final profile) |
| Main power | 7.5KW |
| Hydraulic power | 3KW |
| Control system | PLC Panasonic |
| Drive | By chain |
