MFX 303 No-Girder Curve Roll Forming Machine

Introduction
MFX 303 no-girder corrugated sheet making machine is made of several parts, including the main machine, the curving machine and the seaming machine. Its details about technical parameters are as follows:
1. Maximum width of raw material is 618 mm. And effective width is 303 mm.
2. Available metal sheets are in thickness of 0.8 mm to 1.2 mm.
3. It has 14 roll stations.
4. The main power is 5.5 KW, bending machine power is 4 KW, and the hydraulic station power is 2.2 KW.
5. It is controlled by Panasonic PLC system.
6. In MFX 303 no-girder corrugated sheet making machine, rolling speed ranges from 10 m/min to 15 m/min.
7. Driving way is through single row of chain (1.5 inch).

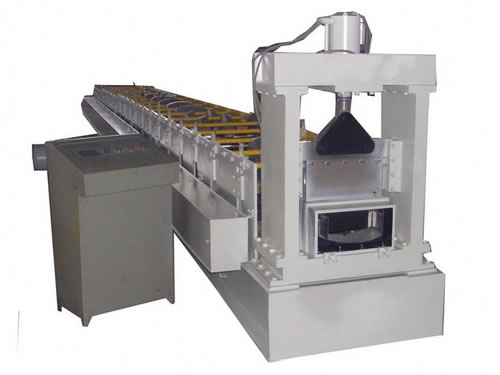

Picture for Reference (MFX 303 No-Girder Curve Roll Forming Machine)
