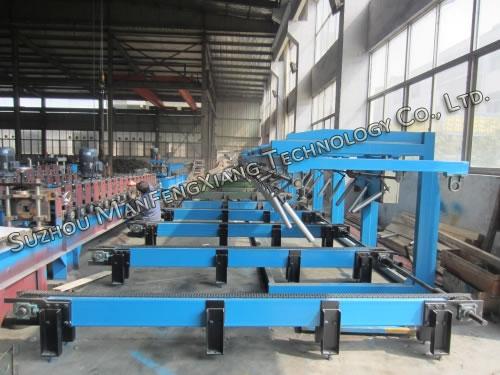

High Speed Roofing Roll Forming Machine
Description
High Speed Roofing Roll Forming Machine is also named roofing sheet making machine or roof panel roll forming machine. Featuring high efficiency, high flexibility, good performance and low production cost, it is the best choice for producing cold rolled metal sheet products.
Application
Roofing sheet making machines are extensively used in building large-scale steel-structure buildings, such as warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, greenhouses, etc.
Features
1. Our roof panel roll forming machine is fabricated using premium quality components and high-end technology in synchronization with the set industrial standards.
2. For its corrosion resistance, sturdy construction and operational fluency, the roofing sheet making machine is widely applied.
3. It is really a new type of energy-saving and high-efficiency roof sheets roll former.
4. It also features high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.
Specification
| Rolling speed | 45m/min (not include cutting time) |
| Rolling thickness | 0.4-1.2mm color steel and galvanized steel |
| Control system | PLC (Panasonic) |
| Material width | 1220mm (Effective width 1000mm) |
| Roller stations | 22 stations |
| Roller material | 45#forge steel, coated with chrome |
| Shaft diameter | 85mm |
| Shaft material | 40Cr high quality steel |
| Power of the main reducer | 11Kw |
| Power of feeding motor | 3Kw (servo motor) |
| Hydraulic station power | 5.5Kw |
| Hydraulic pressure | 16Mpa |
| Material of cutter | Cr12Mov, quenched to HRC58-60° |
| Tolerance | 3m±1.5mm |
| Electric source | 380V, 50HZ,3 phase |
| Way of drive | 1.2 inch chain |
SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is engaged in supplying different steel processing equipments, including tube mills, roll forming machines, etc. Besides tube mills and roll forming machines, other machines manufactured by us, including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, and other machines also feature high accuracy, easy operation, convenient maintenance and high efficiency. Our tube mills, roof panel roll forming machines (roof sheet making machines) and other products have been passed CE certification and sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Manfengxiang is always ready to provide the best solution for your production requirements.
