Hydraulic Curving Machine
Introduction

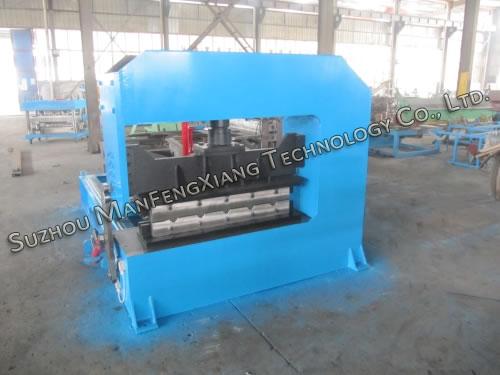

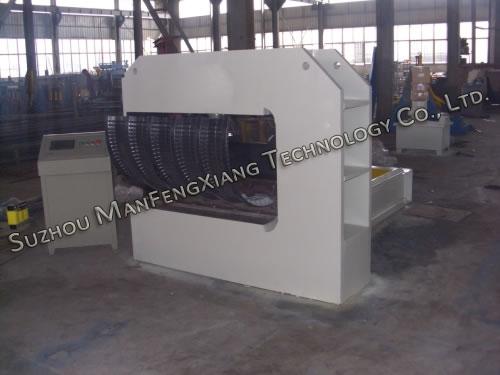

Hydraulic roof panel curving machines adopt firm welded steel construction as machine frames, so they are rigid in structure and durable. Besides, it is controlled by Panasonic PLC system, which makes operation convenient and reliable. Comprehensively, this roll plate bending machine features by economical cost, simple manipulation and convenient maintenance. We also customize special tools for special requirements.
Main Technology Parameter
1. Main power of this hydraulic roof panel curving machine is 0.85 KW.
2. Hydraulic power is 5.5 KW.
3. Adjustable roll speed ranges from 0 m/min to 10 m/min.
4. Available sheet metals are with thickness of 0.3 mm to 0.9 mm.
5. Cutter blades are made from Cr12 and coated with chrome. Its hardness reaches up to HRC55-60.
6. Maximum bending angle is 120°.
7. The hydraulic roof panel curving machine is controlled by PLC system.
8. Maximum width of available sheet metals is 1000 mm.
Our hydraulic roof panel curving machines, tube mills, roll forming machines and other products have been sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Our products have won acclaim from all customers at home and abroad. SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is always ready to provide the best solution for your production requirements.

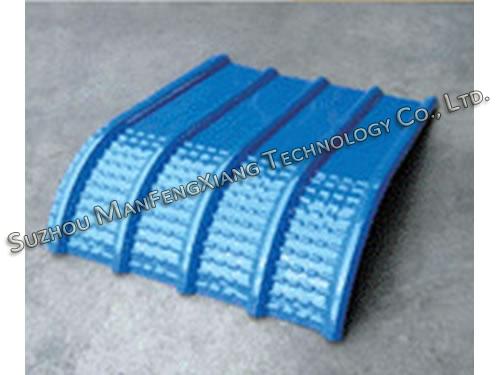

- Roof Curving MachineRoof curving machines are used to roll sheet metals into certain shapes so that these sheets can be used as roofing panels. This steel panel roll forming line is controlled with Panasonic PLC control system. Besides, the main motor of this roofing sheet making machine is from Yaskawa. Size of this machine is 3000 mm × 1400 mm × 1400 mm, the main motor power is 0.8 KW...
