Glazed Tile Forming Machine

Description
This glazed tile roll forming machine is composed of feed leading table, main forming machine, mould former device, cutting device, hydraulic station, computer control system, and so on. Glazed tile produced by this type of roll forming machine have beautiful appearance. It can be widely used in residential area, villa, hotel, holiday village, etc.

Features
1. Productivity can reach up to 3m per minute.
2. The roofing tile products formed by glazed tile roll forming machine performs the elegant style of traditional roof tile and suits for every architecture design.
3. The machine is for continuously roll forming and pressing step tiles on series of product profile. The length can be set up or unlimited and the depth of each step is adjustable.
4. Normal holder, hydraulic holder, auto-stacker and discharge table are optional according to your requirement.

Parameter of glazed tile roll forming machine

1. Machine Size 11800 mm × 1700mm × 1600 mm
2. Rollers 14 to 16 rows
3. Rolling material Forging steel 45
4. Rolling galvanization thickness 0.05 mm
5. Material of the cutting blade Cr12
6. Productivity 3m/min
7. Electric control system PLC vector inverter
8. Main motor power 4 KW
9. Hydraulic unit power 3 KW
10. Raw material thickness 0.4mm to 0.6mm
11. Raw material width 1000mm
Note: Machines suitable for other width materials can be customized.

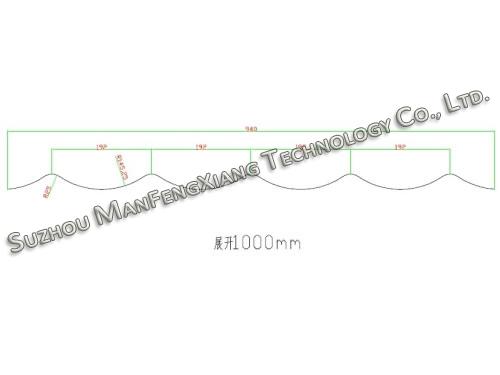

Dimensional Drawing of Glazed Tile

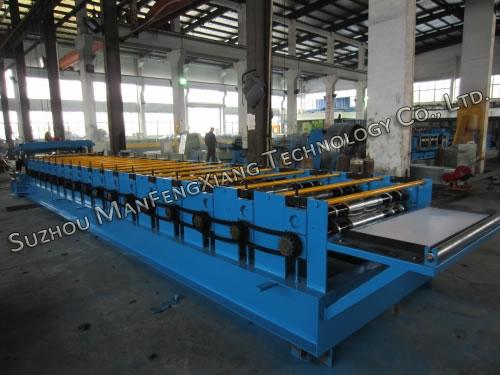

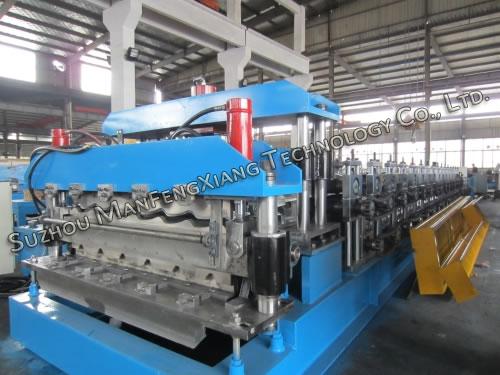

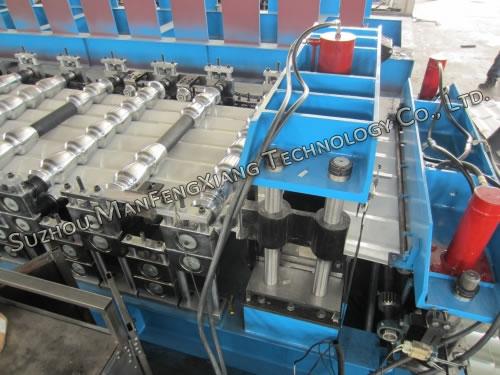

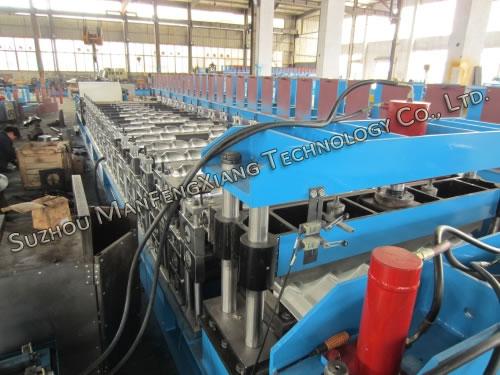

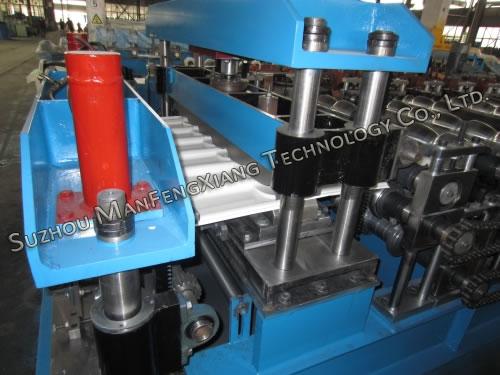

Pictures of Glazed Tile Roll Forming Machine

SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is engaged in supplying different steel processing equipments, including tube mills, roll forming machines, etc. Besides tube mills and roll forming machines, other machines manufactured by us, including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, and other machines also feature high accuracy, easy operation, convenient maintenance and high efficiency. Our glazed steel roof tile roll forming machines have been passed CE certification and sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Manfengxiang is always ready to provide the best solution for your production requirements.
