Door Frame Forming Machine
Description

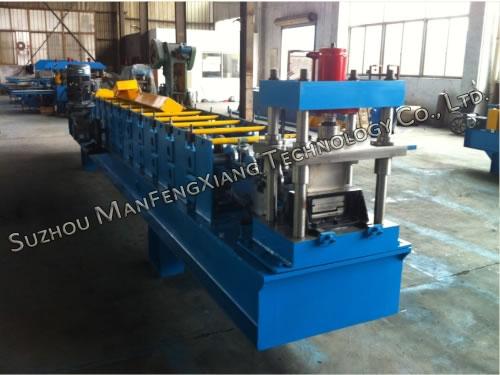

Window and door frame roll forming machines are used to form metal door or window frames by constantly and laterally bending metal plate. The whole production line mainly consists of uncoiler, hydraulic punching hole & angle, roll forming machine, auto cutting machine, computer control system and products run out table.
Features
1. There are 15 forming stations in this window and door frame roll forming machine.
2. After roll formed by this roll forming machine, the surface of the metal frame will be very smooth and beautiful without any scratch on surface.
3. PLC fully Automatic Control System is adopted to save human power.
4. Easy operation: Key in the length and quantity on the control panel.
5. The punching also can be designed according to your needs.

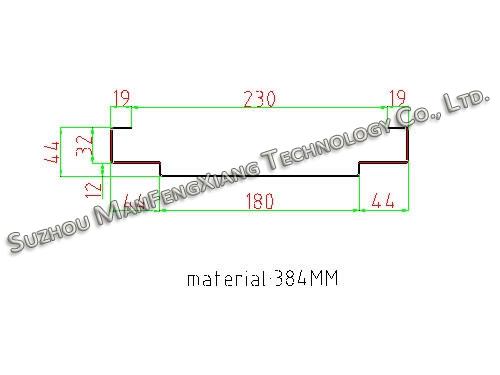

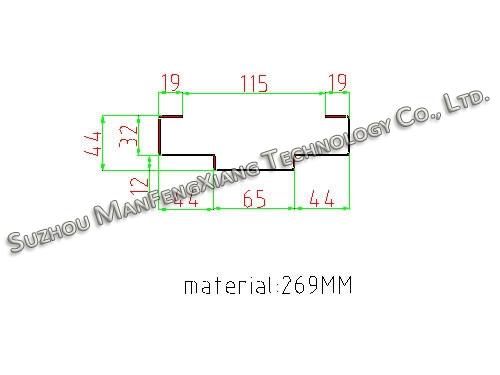

6. We can design the machine according to your specification and profile drawing.
Parameters of Window And Door Frame Roll Forming Machine
| 1. Raw material request | Q235 cold rolled steel |
| 2. Material thickness | 0.8mm to 1.2mm |
| 3. Whole line working speed | 12m/min to 15m/min |
| 4. Motor power | 15KW |
| 5. Diameter of the roller axis | ф75mm |
| 6. Roller material | GCr12, quenching treatment: HRC58-62° |
| 7. Driving system | 1.2 inch chain drive |
SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is a professional supplier of roll forming equipment, slitting line, cut-to-length line machine, pipe-making machines and related metal sheet processing equipment in China. Our products are mainly used in the construction, automobile manufacturing, machine manufacturing, electronics and many other areas. Window and door frame roll forming machines from Manfengxiang have been sold to the United States, South Africa, Portugal, Indonesia and other countries.
