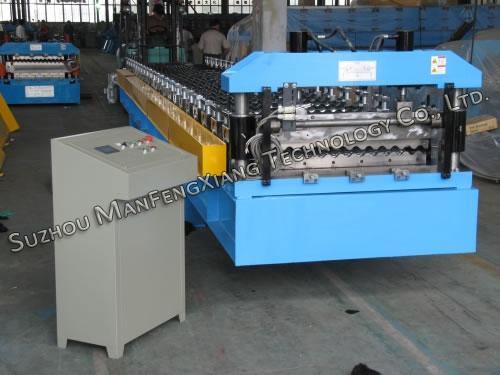

Corrugated Roll Forming Machine
Description
The complete line mainly includes decoiler, main roll forming machine, hydraulic cutting device, hydraulic station, PLC computer control system, and output table. Corrugated roof roll forming machine is widely used in construction industry for making the roof tile and wall panel outside of building. We offer this machine in different specifications to fulfill the diverse needs of customer at most affordable prices.
Features
1. Our corrugated roof roll forming machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life.
2. Our corrugated roofing sheet making machines are designed with Panasonic PLC and touchable screen for data processing and setting.
3. Roll forming speed is up to 30 meter per minute.
4. The components are procured from reliable sources of the market to deliver high performance and superior quality to users.
Technical Specification of Corrugated Roof Roll Forming Machine
| Material thickness | 0.3mm to 0.8mm |
| Working speed | 12m/min to 15m/min |

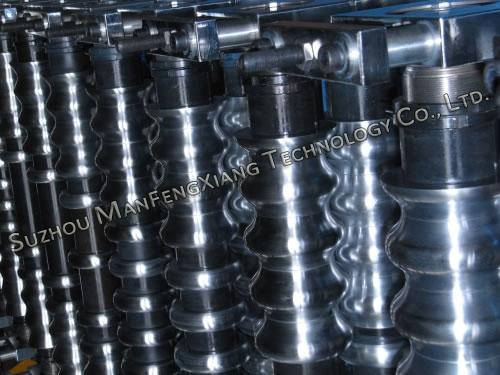

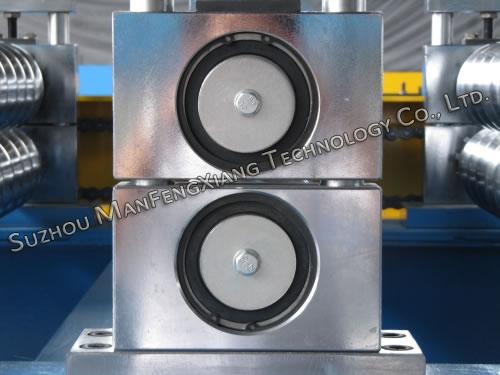

| Roll station | 18 stations (depend on the final profile) |
| Main power | 5.5KW |
| Hydraulic power | 3KW |
| Control system | PLC Panasonic |
| Drive | By chain |
| Material thickness | 0.3mm to 0.8mm |
| Working speed | 25m/min to 30m/min |
| Roll station | 18 stations (depend on the final profile) |
| Main power | 7.5KW |
| Hydraulic power | 3KW |
| Control system | PLC Panasonic |
| Drive | By chain |
| Material thickness | 2mm to 4mm |
| Working speed | 15m/min |
| Roll station | 18 stations (depend on the final profile) |
| Main power | 37KW |
| Hydraulic power | 7.5KW |
| Control system | PLC Panasonic |
| Drive | By gear box |
Working Process of Corrugated Roof Roll Forming Machine
Decoiling→feeding with guide→roll forming→cutting to fixed length→outputting
As specialist tube mills and roll forming machine manufacturer in China, we produce a complete series of machinery products which are widely utilized in construction industry, especially for factory building, warehouse facilities, store facilities, etc. Besides tube mills and roll forming machines, other machines including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, etc. are also manufactured by us. All our corrugated roof roll forming machines (corrugated roofing sheet making machines) are featured by high accuracy, easy operation, convenient maintenance and high efficiency. Welcome to visit our company, see first class fabrication facilities and discuss your needs face to face.
